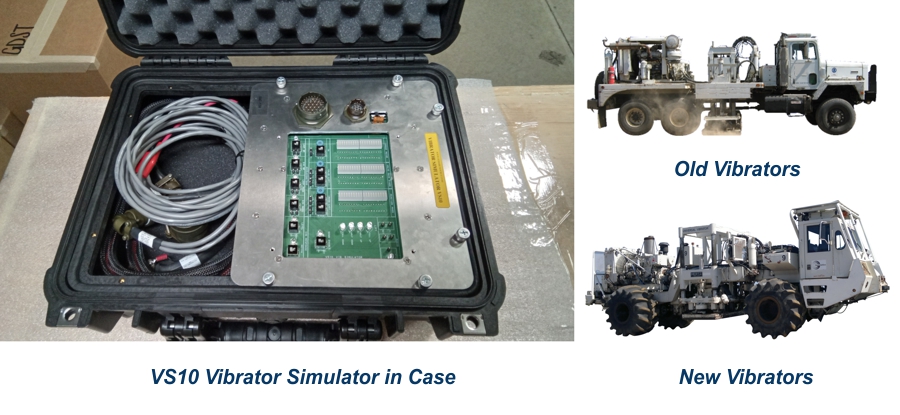

Vibrator Simulator simulates an actual servo hydraulic vibrator. This system is very useful in testing of Vibroseis control electronics, and in instructing of seismic personnel in the operation of Servo hydraulic Vibrators.
This system saves valuable production time by verifying proper operation of Vibrator Electronics and Vibrator Wiring.

A three-stage hydraulic system including:

• Torque Motor
• Pilot Stage
• Main Stage

Main Stage Valve LVDT

Reaction Mass LVDT

Seismic Source M6 accelerometers or Pelton’s M5 accelerometer

Earth resonance Notch x4/x1 switch

4-way valve Lift System

The VS10 features bar graphs for:

Torque Motor Current

Valve Displacement

Reaction Mass Displacement

Polarity Reversal Switches for:

Torque Motor (TM)

Valve LVDT Primary

Valve LVDT Secondary

Reaction Mass LVDT Primary

Reaction Mass LVDT Secondary

Down Enable Switch (with LED)
Accelerometer Normal Switch (with LED)
Accelerometer Disconnect Switch

LEDs show status of Lift System:

Full Up

Half Up

Half Down

Full Down
