Welcome To Seismic Source Company

Seismic Source Company is a manufacturer of seismic instruments and data acquisition systems. Its products are used in a broad range of applications: Seismology, Structural Monitoring, Seismic Site Evaluation, Civil Engineering, Gas and Oil Exploration, Industrial Vibration Monitoring.

Products

ACC Array
Vibrator QC System
Great tool for seismic vibrator studies

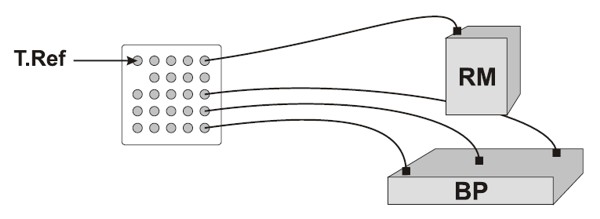

24-channel input interface for DAQLink-III acquisition system
(23 for accelerometers and one for True Reference)

Computes accelerometer weighted sum using input array

Controlled state of current supplies for external accelerometers

LED status indication of every accelerometer input

Differential outputs to the acquisition system

Input channel impedance of 1 Mohm

Bandwidth: 0.1 - 5000 Hz

Crosstalk: -100 dB

Phase tolerance of channels: ±0.2 deg

10 mA current supply for every accelerometer channel

Max input signal: ±10 V p-p (True Reference),
±2.8 V p-p (Accelerometer input)
Power supply: 9 - 18 V



Downloads:
  Accelerometer Array Brochure Download Accelerometer Array Brochure
