big bang750 3 POINT
Accelerated Weight Drop

The Big Bang 750 THREE POINT is the latest in reliable, high speed, low cost seismic surveying. The system provides for high speed cycle time and best in class move up time cutting costs and improving profits. The full spectrum of important highs and LOW frequency come standard. The BB750 3 POINT Mount is set to use hydraulic pressure from the host tractor. The energy is stored in common “garage door” springs (8) which are low cost and reliable. The system can easily connect to any standard 3 point hitch or Skid Steer using the optional Skid Steer Mount.

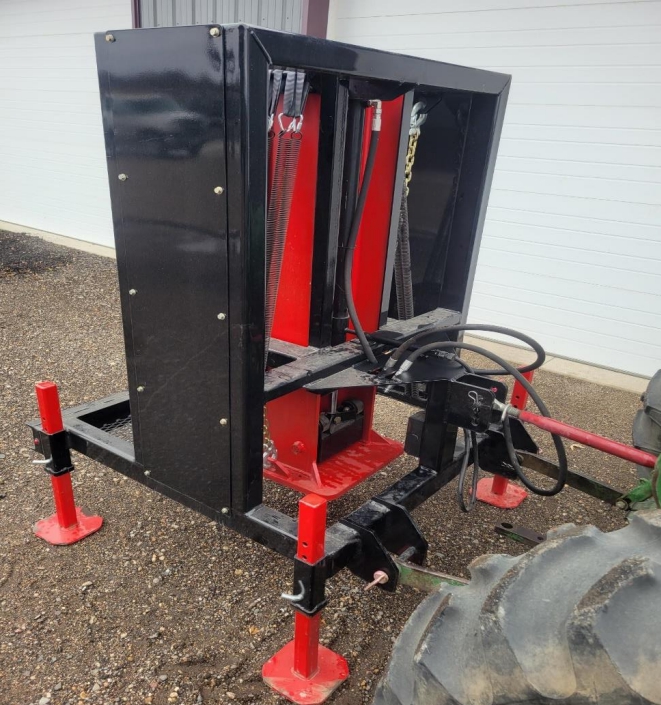

Big Bang 750-3Point

BIG BANG 750 3-POINT HITCH

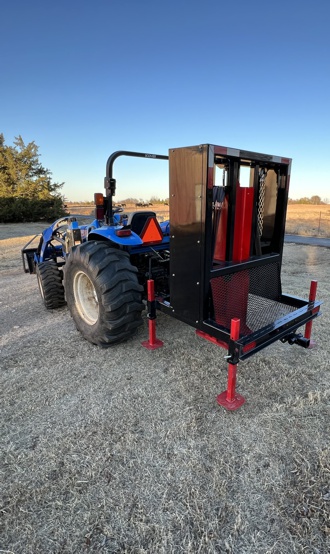

Big Bang 750 3 back

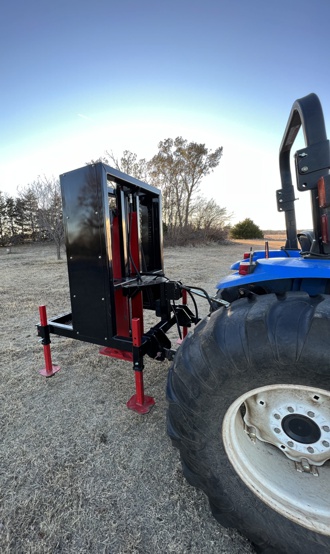

Big Bang 750 3 side



Specifications:


Impact Hammer Weight: 750 lbs.

Release Height: 24 inches

Graphical Layout and Roll Display

Cycle Time: 5-6 seconds

Impact Foot Size: 20x20 inches

Impact Energy: approx. 20,000 Joules

Energy Storage Spring: 140 lbs. standard "garage door" springs (quantity 8 per system)

Total System Weight: 1200 lbs.

Height: 79 inches. Width: 60 inches. Operation Length: 60 inches

Power Plant: Tractor Hydraulic System (Not Provided)

Tire Size: 205/75R15

Spare Tire: Included (not shown)

Rear Streamer Array Storage Area: 50"x30"x20"

Mount: 3-Point Tractor Hitch or Optional Skid Steer mount

Adjustable Hitch: Yes (10” adjustment)

Crated Shipping Weight (pounds): approx. 1100 lbs



Downloads:

  DX-6 Brochure Download Big Bang 750 3 Point Hitch Brochure
