High Resolution Versatile Seismic Recording system |

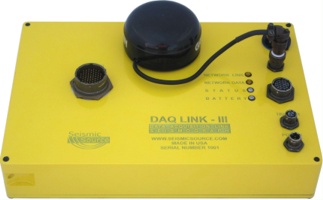

The DAQlink III is the third generation of portable seismograph systems. The system can be configured as a stand-alone monitoring system, a refraction system or a distributed seismic reflection system. The DAQlink III has been designed for temporary or long term installations and can be monitored continuously or periodically, locally or remotely. External clock discipline via GPS Module, VHF/UHF radios or Wire enables usage in any environment. |
|
|
|
|
|

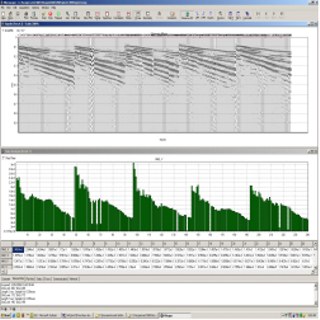

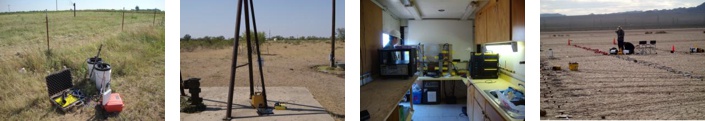

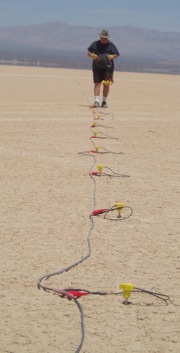

DAQlink III Works in All Environments
DAQlink III Specifications: |
Electrical: |
A/D |
24 bit sigma delta converter |
||
Anti-Alias Filters |
85% of Nyquist frequency |
||
Low Cut Filter |
User Selectable – DC, 0.1 Hz, 2 Hz |
||
Filter Type |
Linear Phase |
||
Sample Rates |
1/48, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16 ms |
||
PreAmp Gain |
x2 (6 dB) & x32 (30 dB) standard |
||
Max Input at x2 (Standard) |
3.58 Volts P-P x2 (Standard) |
||
Bandwidth |
DC to 15 kHz |
||
Power |
Less than 0.4 watts per channel |
||
Input Impedance |
100k Ohms |
||
Clock Sync |
GPS |
Physical: |
# Channels |
6, 12 or 24 |
||
Temperature |
-40°C to +85°C |
||
Humidity |
0 to 100% |
||
Size |
13.0" x 9.0" x 2.4" (330 x 230 x 60 mm) |
||
Weight |
7.5 lbs (3.4 kg) |
||
Data Storage (Internal 16GB CF) |
120 hours (24 channels @ 2ms) |
||
Data Storage (through Ethernet) |
Unlimited |
||
Data Format |
32-bit float IEEE SEG-Y/SEG-D |
||
LEDs |
Network Connect, Network Data Status and Battery |
Performance: |
Trigger Accuracy |
± 1 µs at all sample rates |
||
Dynamic Range |
Better than 118 dB (at 2 ms) |
||
THD |
0.0012 % |
||
Crosstalk |
Better than -125 dB |
||
Common Mode Rejection |
Better than 100 dB |
||
Noise Floor |
< 0.2 µV RMS @ 2ms |
Connectors: |
RJ-45 |
Standard CAT-5 Ethernet |
||
GPS |
4-pin Weatherproof |
||
Trigger |
3-pin Weatherproof |
||
Power |
2-pin Weatherproof |
||
Auxiliary Port |
19-pin Weatherproof |
||
Seismic Data |
55-pin Weatherproof |
