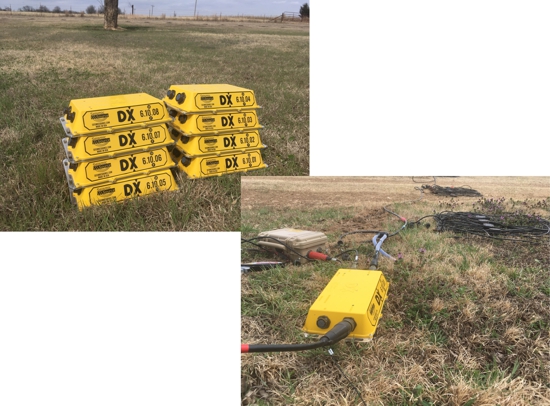

Autonomous Operation features:
|
|
|
Internal GPS: disciplines clock, locates node, and provides accurate timing.
|
|
|
Internal memory plus optional external USB memory for data security and long term operation.
|
|
|
Records with geophones, hydrophones, microphones and/or accelerometers.
|
|
|
Includes full featured, complete software package for data collection, file creation and SEG-Y, SEG-D, ASCII or miniSEED output.
|
|
|
Same DX6 node can be used with Wi-Fi or cabled network for real-time operation.
|
|
|
Scheduled Wakeup and Sleep times.
|
|
|
Low-Power Wireless Radio built into unit.
|
| |
Industry Leading Specifications:
|
|
|
ADC — 24 delta-sigma
|
|
|
Channels per Node — 6
|
|
|
Dynamic Range — 125 dB @ 500 sps
|
|
|
Distortion — -122 dB @ 500 sps
|
|
|
Max Input Voltage — 7V Peak-to-Peak
|
|
|
Noise — 0.15μV @ 500 sps
|
|
|
Bandwidth — DC to 27 KHz
|
|
|
Preamp Gains — 1x, 4x, & 16x
|
|
|
Internal Memory — 16 GB (expandable)
|
|
|
Sample Rates — 125, 250, 500, 1k, 2k, 4k, 8k, 16k, 32k & 64k sps
|
|
|
Internal Radio — Mesh Radio Network
|
|
|
Internal Network — 10/100Base-T
|
|
|
Power Draw — 2 Watts @ 12V
|
| |
DX6 Configuration:
|
| |
Two Network Ports:
|
|
Upstream (6 Data Channels & Ethernet) |
|
Downstream (Ethernet with POE) |
| |
Battery Port:
|
|
Three Pin Connector |
|
Supports 12 Volt Batteries |
| |
Auxiliary Port:
|
|
Ruggedized USB for Data Backup |
|
External Trigger |
| |
|
| |
Wi-Fi or Cabled Network Operation - |
| |

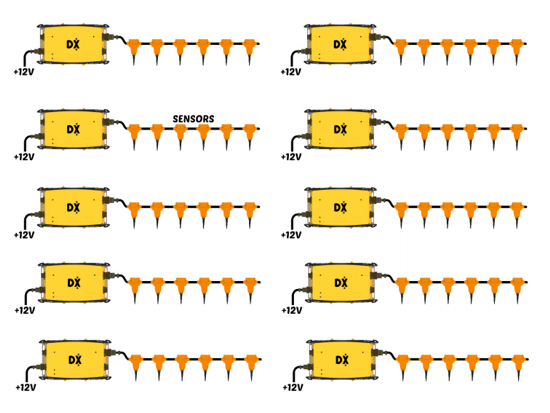

6 channel Node Acquiring Real-Time Data |
| |

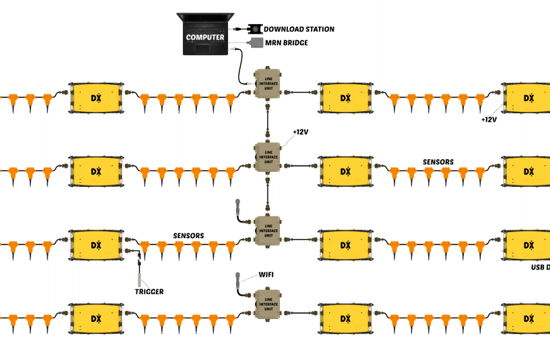

DX6 seismograph nodes can be linked together with cables or Wi-Fi for real-time operation. This includes system status and control, plus real-time data collection, file harvest and SEG-Y output. |
| |
Real-Time Operation features:
|
|
2D, 3D, and random spreads supported |
|
600+ channels per line |
|
32+ lines per spread |
|
Nodes automatically deployed using GPS |
|
System supports SPS files |
|
Nodes can be networked using cables or Wi-Fi |
|
Includes full featured software package: |
| |
- Spread deployment, status, and control |
| |
- Data collection and QC |
| |
- SEG-Y file creation and archiving |
|
NTP Synchronization - Allows multiple DX6 nodes to be synchronized without GPS signal. |
|
Low-Power Wireless Radio built into unit. |
| |
Networked Operation features:
|
|
DX6 equipped systems monitor noise and other environment conditions in real-time, no more "shoot-blind" acquisition. |
|
DX6 optional components include: |
| |
- Line Interface Units connect to multiple lines and the Central Computer. |
| |
- The Central Computer manages spread, controls acquisition and collects data to generate SEG-Y files. |
|
Same DX6 node can be used for autonomous GPS controlled operation. |
| |
SourceLink Compatibility:
|
| |
DX6 equipped systems are compatible with SourceLink and all SSC other source control electronics. |
