Load Cell is designed by Seismic Source Company to measure the Hold Down weight and the output force of the Servo Hydraulic Vibrator unit. The output of the Load Cells can be recorded with any accurate seismic recording system.

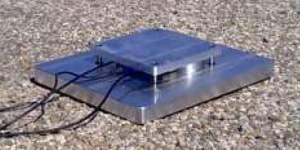

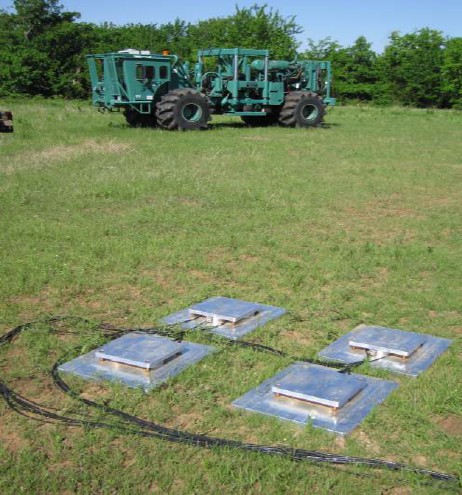

A typical system includes four base plates with each base plate containing three Load Cells. The total weight capacity of the system depends on the type of load cells installed. Typical load cell capacities include 25,000 lbs. per cell, and 50,000 lbs. per cell.

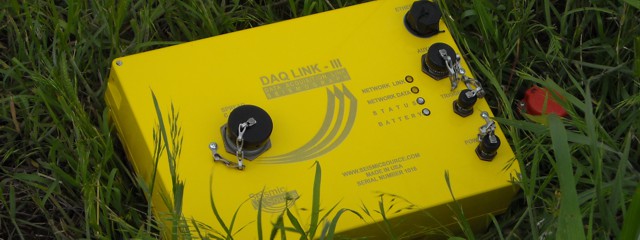

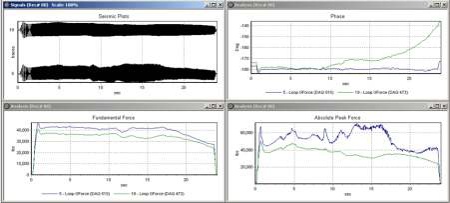

Each Load Cell System uses an Interface Box to gather data from the Load Cells and transmit it to a recording device for interpretation by the provided VScope software.

Easy to use Software

Robust Database

GPS for Time and Location of Test

For use with many Seismic Vibrators

12Vdc operation
