Zero-Time Box
For Fast Timing Analysis


The Zero-Time Box is designed to compare the start times of source units with the recording system. It is compatible with every source encoder that outputs a start signal on a BNC connector, and also supports every source controller and decoder that does the same. The Zero-Time Box can also be used as a 5 channel precision measurer of timing intervals.

Zero Time Box


Features:

No setup required

Works with any recording system

Full galvanic isolation between channels

Automatically determines slope of the pulses (rising or falling)

Works with any source electronics that provides a low-voltage start signal

High precision of measurement

Visual representation of results on the display

Handy built-in rechargeable battery for portable operation

Includes power cable for 12 Volt operation in the office

Unit automatically powers off if not used



Benefits:

Useful for Every Project

Quickly checks start times for five controllers

Assures clients that sources start with the recorder



Zero Time Box System Includes:

Five Channel Zero Time Box

110/240VAC Battery Charger (for internal battery)

Power Cable (for using external power)

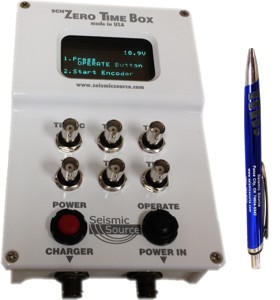

Zero Time Box


 Zero Time Box Specifications:
 Electrical:

Measuring range of timing intervals



-32000 to +32000 microseconds

Timing Accuracy



±1 microsecond

Minimum Trigger Voltage



3V (rising or falling edge)

Maximum Trigger Voltage



10V (rising or falling edge)

External Power



10-16V, 150mA

Internal Rechargeable Battery



12 hours of continuous operation

Physical:

Number of Channels



6 (1 Encoder plus 5 Decoders)

Temperature



-4°F to +120°C (-20°C to +50°C)

Humidity



95% non-condensing

Size



7.48" x 4.84" x 2.56" (190 x 123 x 65 mm)

Weight



2.6 lbs (1.18 kg)

Easy Operation:

Connect the Time Break to the Encoder and Time Break channels to the Decoders

"Red Button" powers up system

"Black Button" arms and controls operation of Zero Time Box

Trigger the recording system

And Read the Results!

Zero Time Box Zero Time Box


Zero Time Box

Downloads:

  Zero-Time Box Brochure Download Zero-Time Box Brochure
