Provides Zero Time, Location and Source Quality Control |
|
![]() |
Operation Modes: |
|
|
Dynamite: Saves Time Break, Shooter Location and Uphole Phone Data |
|
Mechanical Impact: Saves Time Break, Equipment Location and Pop Signature (when equipped with a signature geophone or hydrophone) |
|

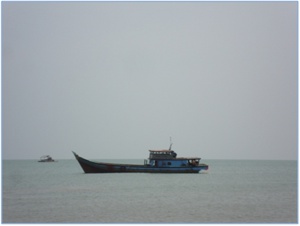

Offshore Airgun: Saves Time Break and Gunboat Location |
|

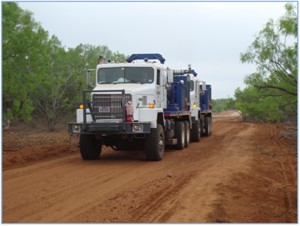

Vibroseis: Saves Zero Time, vibe location, as well as recording Reference and Weighted Sum (Ground Force) signals. |
|
|
Source Signature Recorder Specifications: |
Electrical: |
|
A/D |
32 bit high-speed sigma delta converter |
|
|
Anti-Alias Filters |
85% of Nyquist frequency |
|
|
Low Cut Filter |
User Selectable – DC, 0.1 Hz, 2 Hz |
|
|
Filter Type |
User Selectable – Linear, Minimum Phase |
|
|
Sample Rates |
0.25, 0.5, 1, 2, 4, 8 ms |
|
|
Max Input @ High Gain |
0.31 Volts peak to peak |
|
|
Max Input @ Low Gain |
5.00 Volts peak to peak |
|
|
Power Wake/Sleep |
0.48/0.01 watts per channel |
|
|
Input Impedance |
20k Ohms |
|
|
Clock Sync |
GPS or VHF/Wire |
|
|
Sensor Types |
Passive & Active |
Physical: |
|
# Channels |
3 |
|
|
Temperature |
-40°C to +85°C |
|
|
Humidity |
0 to 100% |
|
|
Size |
9 x 9 x 2.25 in. (230 x 230 x 56 mm) |
|
|
Weight |
5 lbs (2.3 kg) |
|
|
Data Storage |
480 hours for 3 channels @ 2ms |
|
|
Data Storage |
960 hours for 3 channels @ 2ms |
|
|
Data Format |
32-bit float IEEE SEG-Y/SEG-D |
|
|
LEDs |
GPS/Recording LED, Battery LED |
Performance: |
|
Trigger Accuracy |
± 1 µs at all sample rates |
|
|
Dynamic Range |
126 dB |
|
|
THD |
0.0012 % |
|
|
Crosstalk |
Better than -125 dB |
|
|
Common Mode Rejection |
> 100 dB |
|
|
Noise Floor (@2ms) |
< 0.09 µV RMS |
