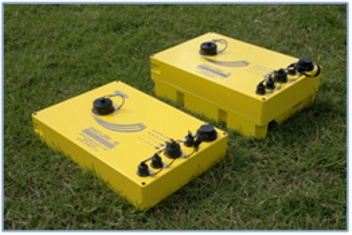

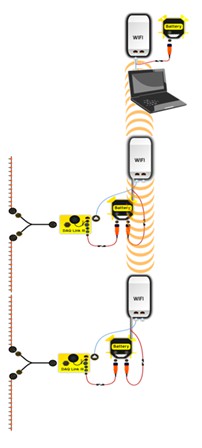

Distributed High Resolution Seismic Recording System |
|
![]()
|
|
|
Distributed DAQlink III Specifications: |
Electrical: |
|
A/D |
24 bit sigma delta converter |
|
|
Anti-Alias Filters |
85% of Nyquist frequency |
|
|
Low Cut Filter |
User Selectable – DC, 0.1 Hz, 2 Hz |
|
|
Filter Type |
User Selectable – Linear, Minimum Phase |
|
|
Sample Rates |
1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16 ms |
|
|
PreAmp Gain |
x2 (6 dB) & x32 (30 dB) standard |
|
|
Max Input at x2 (Standard) |
3.58 Volts P-P x2 (Standard) |
|
|
Bandwidth |
DC to 15 kHz |
|
|
Power |
Less than 0.8 watts per channel |
|
|
Input Impedance |
100k Ohms |
|
|
Clock Sync |
GPS |
Physical: |
|
Number of Channels |
24 |
|
|
Temperature |
-40°C to +85°C |
|
|
Humidity |
0 to 100% |
|
|
Size |
13.0" x 9.0" x 4.8" (330 x 230 x 120 mm) |
|
|
Weight |
15 lbs (6.8 kg) |
|
|
Data Storage (Internal 16GB CF) |
120 hours (24 channels @ 2ms) |
|
|
Data Storage (through Ethernet) |
Unlimited |
|
|
Data Format |
32-bit float IEEE SEG-Y/SEG-D |
|
|
LEDs |
Network Connect, Network Data Status and Battery |
Performance: |
|
Trigger Accuracy |
± 1 µs at all sample rates |
|
|
Dynamic Range |
Better than 118 dB (at 2 ms) |
|
|
THD |
0.0012 % |
|
|
Crosstalk |
Better than -125 dB |
|
|
Common Mode Rejection |
Better than 100 dB |
|
|
Noise Floor |
< 0.2 µV RMS @ 2ms |
Connectors: |
|
RJ-45 |
Standard CAT-5 Ethernet |
|
|
GPS |
4-pin Weatherproof |
|
|
Trigger |
3-pin Weatherproof |
|
|
Power |
2-pin Weatherproof |
|
|
Auxiliary Port |
19-pin Weatherproof |
|
|
Seismic Data |
55-pin Weatherproof |
|
|
Up Network Port |
10-pin male Weatherproof |
|
|
Down Network Port |
10-pin female Weatherproof |
Downloads: |
![]() |
Download Distributed DAQLinkIII Brochure |
