Boom Box 3
Overview

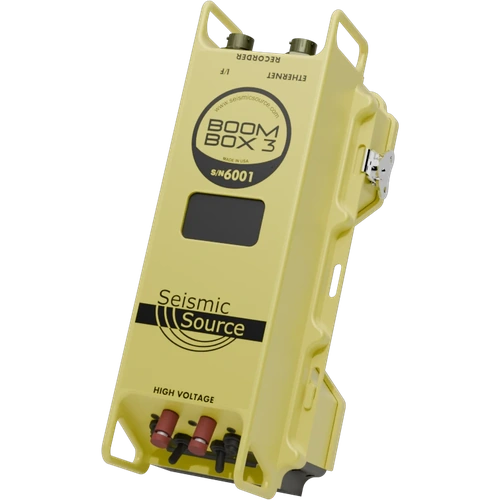

The Boom Box 3 is Seismic Source’s next-generation seismic blasting system designed for both conventional and autonomous acquisition operations. Built for rugged field environments, the Boom Box 3 combines GPS synchronized timing, integrated Wi-Fi communication, advanced uphole recording, and flexible operating modes into a lightweight and compact blasting platform.
The system supports autonomous shooting without radios or repeaters, allowing crews to operate efficiently in thick vegetation, mountainous terrain, or remote areas with poor communications. GPS time-slot synchronization prevents overlapping shots while allowing multiple shooters to operate independently across the same spread.
Boom Box 3 supports both legacy radio-based acquisition systems and modern continuously recording nodal systems. Integrated Wi-Fi allows setup, QC, shot review, and data offload directly from a tablet, laptop, or cellphone. Precise shot timing, GPS positions, uphole information, and quality control data are stored internally for later download and reporting.
Features
- Simple Arm and Charge operation for fast field deployment
- Web-based interface for setup and data management
- Operates from PC, tablet, or cellphone
- Large graphical display for setup and QC information
- Single unit supports both Encoder and Decoder modes
- Supports autonomous acquisition with no radios required
- Multiple shooters can operate independently on the same crew
- GPS synchronized firing with microsecond accuracy
- Legacy VHF/UHF radio operation supported
- Repeater mode support for extended radio coverage
- Internal clock disciplined to GPS or VHF synchronization
- Microsecond firing accuracy
- Records precise shot time and uphole data
- Three-channel 32-bit ADC for uphole recording
- Sample rates selectable from 0.25 ms to 2 ms
- Comprehensive geophone testing
- Measures resistance, frequency, damping, and sensitivity
- Cap resistance verification
- Diagnostic LEDs for GPS, status, and high voltage
- Automatic QC storage and reporting
- Built-in Wi-Fi communication module
- Internal flash memory storage for shot records
- GPS position and shot information saved for every shot
- Ethernet support for data transfer and configuration
- SourceLink software integration
- Supports multiple digital cap manufacturers
- Compatible with Dyno Nobel GeoShot
- Compatible with Orica OSEIS systems
- Compatible with Maxam Riotronic Xs
- Removes internal digital cap delays for accurate CTB timing
- 400 Volt firing voltage
- > 200A firing current
- 10–36 VDC operating voltage
- 8GB internal flash storage
- Weight: 3.1 lbs (1.4 kg)
- Operating temperature: -40°C to +60°C
Benefits
- Autonomous GPS operation eliminates radio communication problems in difficult terrain and dense vegetation.
- Multiple shooters can safely operate simultaneously using GPS time slots for higher production rates.
- Microsecond GPS synchronized timing improves shot accuracy and consistency across the spread.
- Integrated geophone and cap testing verifies system integrity before firing.
- Designed for continuous recording systems including Fairfield, Sigma, Geospace, and Unite nodes.
- Integrated Wi-Fi, GPS, storage, and QC tools reduce external hardware requirements.
- All shot timing, GPS, and QC information is stored internally and can be offloaded into SourceLink for advanced reporting and analysis.
Related Applications
Learn more about applications commonly used with this product.
- Operate without radios or repeaters in difficult terrain and remote acquisition areas.
- Supports traditional radio-based blasting operations using encoder/decoder systems.
- Optimized for continuously recording nodal systems and high-productivity acquisition.
- Integrated geophone and shot verification for improved seismic QC.
- Supports modern digital blasting cap technologies for enhanced safety and timing precision.
