Force 3

Force 3

Overview

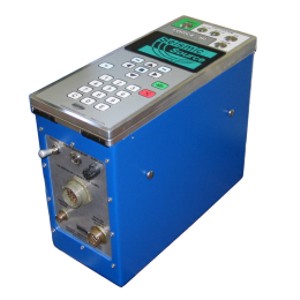

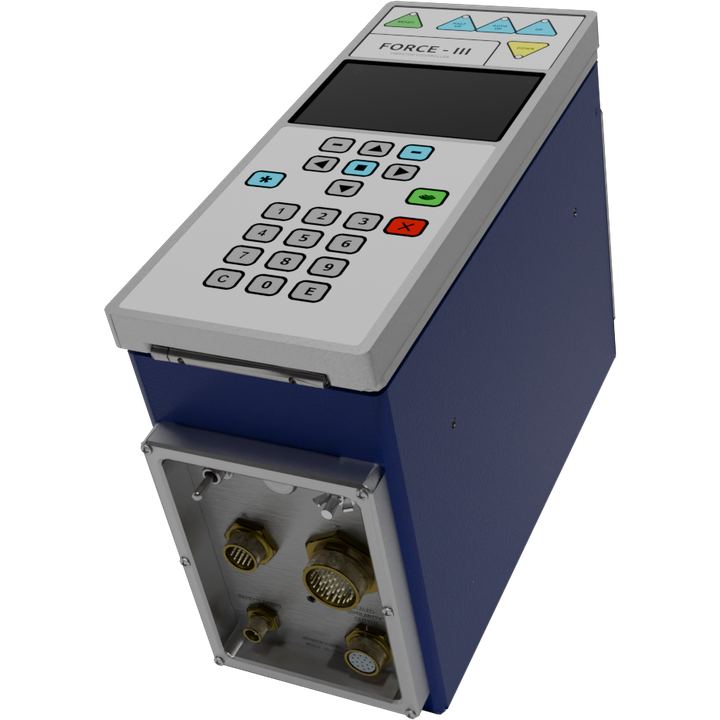

Force 3 is Seismic Source’s vibrator control system for all vibroseis sources. It is designed to control individual vibrators or synchronize entire fleets of trucks using GPS, VHF, or UHF radio timing.

Force 3 starts the vibrator and controls its sweep with high precision and accuracy. It includes advanced ADC electronics, increased computing power, GPS source positioning, internal memory for VSS and PSS data storage, integrated Wi-Fi, and Ethernet control through SourceLink.

The system supports integrated fleet operation and autonomous operation. Crews can use integrated mode for multiple fleets of multiple units, or autonomous mode for vibrators operating in rough or remote terrain without radios or repeaters.

Force 3 is compatible with small vibrators, legacy vibrators, and newer vibrators. It also supports P-wave and shear-wave vibrator operations.

Features

Advanced Acquisition Electronics
  • Latest generation vibrator control electronics
  • 24-bit sweep resolution
  • 250 microsecond control system sample rate
  • Advanced ADC chips for improved sweep resolution
  • Increased computing power for faster response
  • Standard vibrator signature recording for HFVS
Integrated and Autonomous Operation
  • Integrated mode for multiple fleets of multiple vibrator units
  • Autonomous mode for rough or remote terrain
  • No radios required in autonomous mode
  • No repeaters required in autonomous mode
  • Internal memory allows operation without radio communication
System Compatibility
  • Operates seamlessly with Universal Encoder 3
  • Compatible with Boom Box 3
  • Compatible with RTM 3
  • Compatible with standard radios
  • Compatible with standard timing
  • Compatible with standard field crews
  • Compatible with P-wave and shear-wave vibrators
Communications and Control
  • Integrated radio interface works with almost any radio
  • Integrated GPS interface sends source location back to the recording system
  • Integrated Wi-Fi for setup and operation from a phone or tablet browser
  • Integrated Ethernet for direct SourceLink control
  • 100 Mbit built-in Ethernet speed
  • Optional meshed wireless radio
Complete Vibrator Control System
  • Fully compatible with servo-hydraulic vibrators
  • Maximum force output with minimum distortion
  • Stable, fault tolerant system
  • Automatic vibrator calibration
  • Dual accelerometer circuits
Meshed Wireless Ethernet System
  • High-speed wireless communication
  • Vibrator group messages
  • Automated group Center of Gravity, or COG
  • Source-driven operation
  • Wireless digital similarities
  • Upload custom sweeps
GPS Location and Timing
  • GPS time synchronization
  • VHF timing verification
  • Centimeter accurate GPS
  • Timing synchronization set by GPS time or VHF radio message
Storage and Specifications
  • 64 standard, custom, or linked sweeps stored in library
  • 8 GB internal CompactFlash data storage
  • Stores approximately 20,000 twelve-second sweeps
  • External USB flash storage
  • Power input: 9-36 VDC
  • Size: 16 x 12 x 6 inches
  • Weight: 22 lbs / 10 kg

Benefits

Increase Field Production
  • Force 3 supports multiple acquisition modes and allows crews to switch between techniques as field conditions require.
Operate in Remote Terrain
  • Autonomous mode allows vibrators to operate without radios or repeaters, making the system useful in rough terrain or poor communication areas.
Improve Sweep Quality
  • Advanced electronics and high-resolution sweep control help generate better sweeps in difficult conditions and tougher terrain.
Simplify Fleet Control
  • Force 3 can control individual vibrators or synchronize entire fleets, supporting centralized source control on large seismic projects.
Improve Source Location Accuracy
  • Integrated GPS provides precise source location information and timing synchronization for recording system integration.
Reduce Setup and Data Handling Time
  • Integrated Wi-Fi, Ethernet, internal memory, and USB storage make setup, control, and data offloading easier in the field.
Protect Existing Workflows
  • Legacy compatibility allows Force 3 to work with standard radios, standard timing, and existing crews while supporting newer acquisition workflows.

Related Applications

Force 3 is used on vibroseis projects where accurate sweep control, GPS timing, autonomous operation, and fleet synchronization are required.

Vibroseis Source Control
  • Control individual vibrators or synchronize entire fleets of vibroseis trucks.
Large Seismic Operations
  • Use Force 3 with SourceLink and Universal Encoder 3 for high-production source control.
Autonomous Vibroseis Acquisition
  • Operate vibrators in remote or rugged terrain without radios or repeaters.
P-Wave and Shear-Wave Surveys
  • Compatible with P-wave and shear-wave vibrator systems.
Mixed Source Operations
  • Supports simultaneous control workflows that include vibrator fleets, dynamite shooters, AWD weight drops, and air gun boats.
