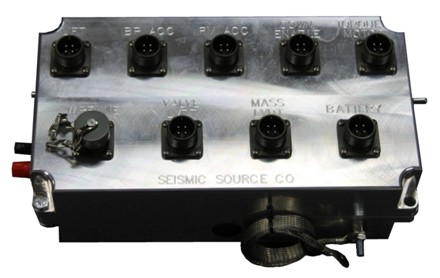

Connector Panel

Connector Panel

Overview

The Connector Panel for Seismic Vibrators is a rugged field interface panel designed to improve electrical performance, thermal reliability, and serviceability for vibroseis source systems. The panel installs directly on the wall of the vibrator cab and provides organized connections for source electronics, accelerometers, radios, and QC systems.

Featuring a new split design, improved thermal specifications, reduced electrical crossfeed between signals, and a completely sealed external panel, the Connector Panel is designed for demanding seismic environments where reliability and field maintainability are critical.

The system also includes new QC and HFVS™ test connectors, internal radio microphone attenuation circuitry, and accessible troubleshooting test points to simplify vibrator diagnostics and maintenance.

Features

Improved Electrical Design
  • Reduced electrical crossfeed between signals
  • Improved electrical specifications
  • Improved thermal specifications
  • Internal radio microphone attenuation circuit
  • Protected and organized signal routing
New Split Design
  • New SPLIT panel configuration
  • Supports easy sandwich or split installation
  • Designed for easier replacement and servicing
  • Compatible with many existing vibrator installations
  • Most stock connector panels can be upgraded easily
Rugged Construction
  • Completely sealed external panel
  • Rugged field construction for seismic environments
  • Manual lift override support
  • Designed for harsh field vibration and weather conditions
Quality Control & Troubleshooting
  • New test connector for QC and HFVS™ work
  • Access panel with troubleshooting test points
  • Supports rapid field diagnostics
  • Improves maintenance access for technicians
System Compatibility
  • Designed for seismic vibrator systems
  • Compatible with modern source electronics installations
  • Supports vibrator QC workflows
  • HFVS™ compatible test access

Benefits

Improve Electrical Reliability
  • Reduced signal crossfeed and improved thermal performance help improve overall vibrator system reliability.
Simplify Upgrades
  • Most stock connector panels can be replaced easily using the new split design installation.
Improve Field Serviceability
  • Integrated test points and QC connectors simplify troubleshooting and maintenance in the field.
Protect Against Harsh Environments
  • The sealed external panel and rugged construction help protect the system from moisture, dust, and field vibration.
Support Vibroseis QC Operations
  • Dedicated QC and HFVS™ test connectors improve support for vibrator testing and source quality control workflows.
Reduce Maintenance Downtime
  • Accessible troubleshooting connections and simplified installation help reduce maintenance time and improve uptime.

Related Applications

Learn more about applications commonly used with this product.

Vibroseis Source Systems
  • Provides organized and rugged interface connections for seismic vibrator electronics.
HFVS™ Acquisition
  • Supports HFVS™ testing and quality control operations with dedicated test connectors.
Field Troubleshooting
  • Integrated test points and access panels simplify field diagnostics and maintenance.
Connector Panel Upgrades
  • Upgrade older stock connector panels with improved electrical and thermal performance.
Large Seismic Operations
  • Designed for demanding production vibroseis environments and modern source fleets.

Brochure

Connector Panel Brochure
