Overview
The PPV Monitor system provides real-time vibration monitoring and peak particle velocity alerts for seismic source operations. It is designed to help crews monitor output force in the field and identify possible contract or vibration-limit violations before they happen.
The system uses a Sigma 4 seismograph node and an Android-based tablet. The operator places the Sigma node near a protected structure, asset, or resource, then monitors source output on the tablet while the vibrator or seismic source is operating.
PPV Monitor provides real-time data, real-time alerts, location tools, field comments, and daily reporting. It helps protect structures and assets while supporting contract compliance during seismic acquisition.
Features
- Monitors vibration levels during data acquisition
- Displays real-time PPV information in the field

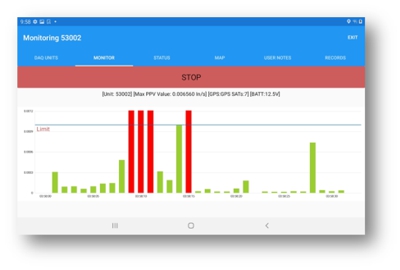

- Red bars indicate potential contract violations
- Allows the PPV monitor operator to alert the source operator
- Logs both violations and non-violations
- Uses an Android-based tablet
- Monitor and control individual or multiple Sigma 4 seismographs
- One-screen operation for shot monitoring
- Rugged and inexpensive field equipment
- Easily moved and quickly deployed
- Real-time unit location display
- Downloadable background maps
- Helps find source flags and monitoring positions
- Drop markers for hazards and comments
- Useful for protecting nearby structures or resources
- Register Sigma 4 units after field deployment
- Download and analyze recorded field data
- Detect events by reviewing maximum amplitudes
- Compare amplitudes against contract tolerances
- Review anomalies between shots for comparison
- Creates daily reports
- Creates event logs
- Peak Data Summary shows number of events by user-defined time slot
- Graphs amplitudes at each frequency
- Line charts for each sensor element and PPV sum
- Peak Event reports provide analysis for selected events
- Includes WTVA graphs and amplitude spectra for each sensor element
- Sigma 4 seismograph node
- Android tablet interface
- Field monitoring of one or more Sigma 4 units
- Designed for quick deployment near protected assets
Benefits
- Real-time PPV alerts help crews respond before vibration levels exceed project tolerances.
- The Sigma node can be positioned near buildings, infrastructure, or sensitive resources to monitor vibration exposure during source operation.
- The PPV monitor operator can warn the source operator when output approaches violation status.
- The system logs both violations and non-violations, helping create a record of monitored acquisition activity.
- Android tablet operation and portable Sigma hardware make the system easy to move and quickly redeploy.
- Event Monitor analysis tools help review recorded data, detect events, analyze anomalies, and generate reports.
- Daily reports, event logs, amplitude graphs, WTVA displays, and PPV summaries simplify project documentation.
Brochure
PPV Viewer Software BrochureRelated Applications
Learn more about applications commonly used with this product.
- Monitor vibrator output force during acquisition and alert crews to possible violation status.
- Compare recorded vibration amplitudes against project tolerances and contract requirements.
- Deploy Sigma nodes near buildings, infrastructure, or sensitive resources to monitor vibration exposure.
- Use PPV monitoring tools for vibration-sensitive industrial, construction, or civil engineering projects.
- Generate logs, summaries, and event reports for project documentation and quality control.
